Repair: Snap to closest Work Point

Snap to closest Work Point

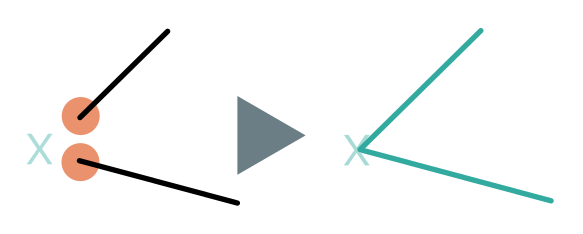

This repair method snaps frames to the closest work point if it lies within a specific tolerance radius. Where a Work Point is a point of grid to grid to level intersections. Each grid to grid intersection point will automatically be projected to all available levels. This option will only be available if your model has grid and levels.

For best results we recommend a clean grid line setup. To show all available work points click the eye icon in repair options. This will visualize all work points marked by an X.
